Basic Info.
| Driving Mode | Electric | Nominal Pressure | PN1.0-32.0MPa |
|---|---|---|---|
| Channel | Straight Through Type | Structure | Flexible Ball Valve |
| Type | Flexible Ball Valve | Function | Control Flow Valve |
| Temperature | Normal Temperature | Standard | Bsp;NPT;DIN;BS;ANSI |
| Application | Industrial Usage, Water Industrial Usage, Household Usage | Ambient Temperature | 15-50 Celsius |
| Working Temperature | 0-90 Celsius | Working Pressure | 16 Bar Max. |
| Open/Close Time | 1-15 Sec. | Rated Protection | IP67 |
| Nominal Voltage | AC230V Working Current 0.5 AMPS | Specifications | Compact Design Light Weight Small Actuator with Fa |
| Transport Package | Bubble Wrap Plus Carton | Specification | DC12V 24V AC110 220V |
| Trademark | LEADWIN | Origin | China |
| HS Code | 8501109990 | Production Capacity | 3000piece/Month |
Packaging & Delivery
| Package Size | 11.00cm * 8.50cm * 7.50cm | Package Gross Weight | 0.300kg |
|---|---|---|---|
| Lead Time |
15 days (1 - 100 Pieces)
35 days (101 - 10000 Pieces) To be negotiated ( > 10000 Pieces) |
Product Description

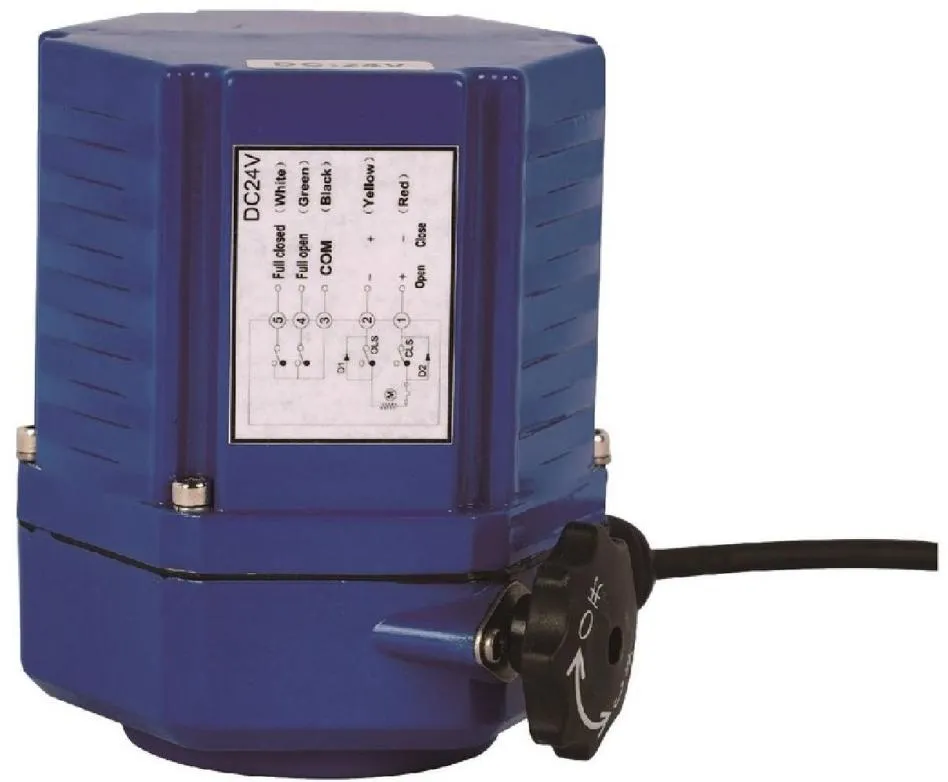

Product DescriptionValve Electric Actuator
Compact design and light weight, small electrical actuator with fail-safe function (NC)| Electric Actuator | MTD-03Appearance Size |
||||
Note:Connect Bafang with 14X14.11X11.9x9.
| Performance Parameter | |||||
| Model | MTD-03 | ||||
| Power supply(v) | DC24V | AC110V | AC220V | ||
| Outputterque | 24NM | 24NM | 24NM | ||
| Motion times(s) | 12s | 12s | 12s | ||
| Scope ofrotary angle() | 0-90° | 0-90° | 0-90° | ||
| Motorpower(w) | 4w | 6.5w | 5w | ||
| Rated current(A) | 1A | 0.2A | 0.1A | ||
| Machine weight(kg) | 1.5kg | 1.5kg | 1.5kg | ||
| Insulation Resistance(M2) | DC24V:100MQ/250VDCAC110V/220V:100MQVDC | ||||
| Voltage Resistance Rating | DC24V:50OVAC;AC110V/220V:150OVAC(1Minute) | ||||
| Protection Level | lp66 | ||||
| Installation Position | Rotary degree:360° | ||||
| Electriad connection | G1/2water-proofcable connectors,Electic power lnes,Signal lines | ||||
| Environment temperature | -30°~+60° | ||||
| Control dircuit options | Standard type:Limit position swich Atype:with mid-position switch | ||||
| Optional function | Dehumidification heater | ||||
Related Products
About us
Retrofitting Valve Electric Actuators:
Many actuators are designed for retrofitting, but compatibility, sizing, and modifications are key considerations. Consulting with experts is advisable.Preventing Leaks and Spills:
Actuators offer precise control, crucial for preventing leaks and spills, enhancing safety and process integrity.Advancements in Remote Monitoring:
Communication technologies now enable remote monitoring and control. Smart actuators with connectivity improve operational flexibility and efficiency.Process Optimization in Manufacturing:
Precise fluid flow control by actuators enhances efficiency, ensures consistent quality, and minimizes waste.Cybersecurity Measures:
Robust security measures, including encryption and authentication, protect smart actuators from cyber threats and unauthorized access.
