Basic Info.
| Driving Mode | Electric | Nominal Pressure | PN1.0-32.0MPa |
|---|---|---|---|
| Channel | Straight Through Type | Structure | Flexible Ball Valve |
| Type | Flexible Ball Valve | Function | Control Flow Valve |
| Temperature | Normal Temperature | Standard | Bsp;NPT |
| Application | Industrial Usage, Water Industrial Usage, Household Usage | Ambient Temperature | 15-50 Celsius |
| Working Temperature | 0-90 Celsius | Working Pressure | 16 Bar Max. |
| Open/Close Time | 1-15 Sec. | Rated Protection | IP67 |
| Nominal Voltage | AC230V Working Current 0.5 AMPS | Specifications | Compact Design Light Weight Small Actuator with Fa |
| Transport Package | Bubble Wrap Plus Carton | Specification | DC12V 24V AC110 220V |
| Trademark | LEADWIN | Origin | China |
| HS Code | 8501109990 | Production Capacity | 3000piece/Month |
Packaging & Delivery
| Package Size | 11.00cm * 8.50cm * 7.50cm | Package Gross Weight | 0.860kg |
|---|---|---|---|
| Lead Time |
15 days (1 - 100 Pieces)
35 days (101 - 10000 Pieces) To be negotiated ( > 10000 Pieces) |
Product Description

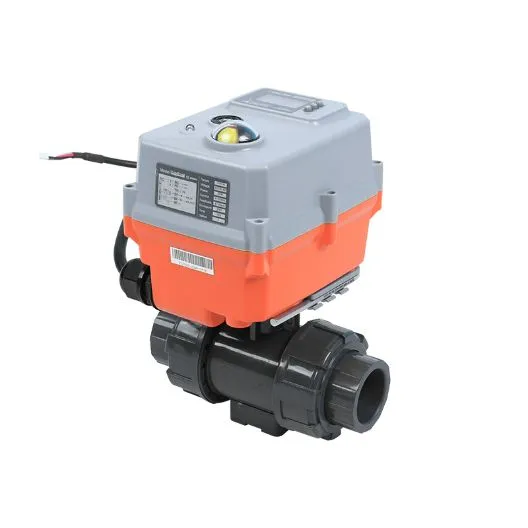

Electric Ball Valve2 way pvc Electric Ball Valve
Compact design and light weight, small electrical actuator with fail-safe function (NC)
|
MTD SERIES ACTUATED VALVE
Enclosure level:IP67, Mechanical port:ISO5211 (F03/F05/F07//F10), It can be used up to 500,000times. Housing material:ABS/DIE CASTING ALUMINUM, with manual override |
|||||||
| PICTURE | MODEL | ON AND OFF VOLTAGE | TIMES | MODULATING VOLTAGE | |||
 |
MTD02N-20N Max 24N | AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v |
10s/15s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
|||
| MTD05N-50N Max60N. | AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v |
12s/20s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v A-20ma |
||||
| MTD08N-80N Max96N. | AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v |
10s/20s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
||||
| MTD10N-100-110N Max132N |
AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v |
10s/20s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
||||
| MTD20N-200N Max 24N | AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v |
25s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
||||
| MTD40N-400N,Max450N. | AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v |
25s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
||||
| MTD100N-1000N | AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v |
10s/45s | AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma |
||||
| MODULATING ACTUATOR INSIDE PARTS |
ON AND OFF ACTUATOR INSIDE PARTS MTD valve electric actuators CE/ISO9001 |
||||||
MTD-05NAC Series normal on/off actuator usage instructions
Direct mount [female octagonal output shaft] CE ISO9001
Main Parts
| Main parts | |||||||||
 |
 |
Parts | Material | Parts | Material | ||||
| 1 | Actuator | Heatproof ABS or Casting aluminum |
6 | Labe | PVC | ||||
| 2 | Indicator | Transparent AS | 7 | Wrench fixed | Heatproof_ABS | ||||
| 3 | Screw X 6 | 304 | 8 | Hexagon wrench | Tool stee | ||||
| 4 | Manual shaft | 304 | 9 | Waterproof cable connector |
NiLon | ||||
| 5 | Oil seal | NBR | 10 | Lid seal | NBR | ||||
| PART 2 ser Manua |
Success comes from our persistent pursue of perfect details. Excellence originates from our persistence of win-win philosophy. |
Actuator | |||||||
| 2 | |||||||||
Related Products
About us
Can valve electric actuators be retrofitted to existing systems?
Yes, valve electric actuators are often designed for easy retrofitting. It's important to assess compatibility, sizing, and any necessary modifications for smooth integration. Consulting with manufacturers and experts can help ensure successful retrofitting.
What role do valve electric actuators play in preventing leaks and spills in industrial processes?
Valve electric actuators provide precise control, crucial for preventing leaks and spills. By accurately adjusting valve positions, they enhance the safety and integrity of industrial processes, minimizing environmental risks.
Are there advancements in remote monitoring and control of valve electric actuators?
Yes, advancements in technology have enabled remote monitoring and control. Smart actuators with connectivity features allow operators to manage valve positions remotely, improving operational flexibility and efficiency.
How do valve electric actuators contribute to process optimization in manufacturing plants?
They optimize processes by providing precise fluid flow control, enhancing efficiency, ensuring consistent quality, and reducing waste in manufacturing operations.
What measures are in place to ensure the cybersecurity of smart valve electric actuators?
To protect against cyber threats, manufacturers implement strong security measures like encryption and authentication protocols, ensuring the cybersecurity of smart valve actuators.
