Basic Info.
| Model NO. | m-04 | Driving Mode | Electric |
|---|---|---|---|
| Nominal Pressure | PN1.0-32.0MPa | Channel | Straight Through Type |
| Structure | Flexible Ball Valve | Type | Flexible Ball Valve |
| Function | Control Flow Valve | Temperature | Normal Temperature |
| Standard | Bsp;NPT;DIN;BS;ANSI | Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Ambient Temperature | 15-50 Celsius | Working Temperature | 0-90 Celsius |
| Working Pressure | 16 Bar Max. | Open/Close Time | 1-15 Sec. |
| Rated Protection | IP67 | Nominal Voltage | AC230V Working Current 0.5 AMPS |
| Specifications | Compact Design Light Weight Small Actuator with Fa | Transport Package | Bubble Wrap Plus Carton |
| Specification | DC12V 24V AC110 220V | Trademark | LEADWIN |
| Origin | China | HS Code | 8501109990 |
| Production Capacity | 3000piece/Month |
Packaging & Delivery
| Package Size | 10.00cm * 10.00cm * 16.00cm | Package Gross Weight | 1.200kg |
|---|---|---|---|
| Lead Time |
15 days (1 - 1000 Pieces)
To be negotiated ( > 1000 Pieces) |
Product Description
Product Description
Valve Electric Actuator

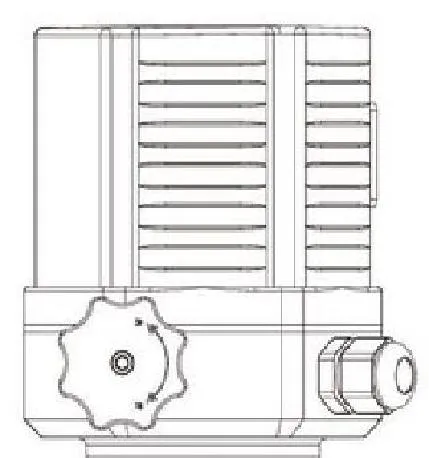

Compact design and light weight, small electrical actuator with fail-safe function (NC)| Electric Actuator | MTD-03Appearance Size |
||||
Note:Connect Bafang with 14X14.11X11.9x9.
| Performance Parameter | |||||
| Model | MTD-03 | ||||
| Power supply(v) | DC24V | AC110V | AC220V | ||
| Outputterque | 24NM | 24NM | 24NM | ||
| Motion times(s) | 12s | 12s | 12s | ||
| Scope ofrotary angle() | 0-90° | 0-90° | 0-90° | ||
| Motorpower(w) | 4w | 6.5w | 5w | ||
| Rated current(A) | 1A | 0.2A | 0.1A | ||
| Machine weight(kg) | 1.5kg | 1.5kg | 1.5kg | ||
| Insulation Resistance(M2) | DC24V:100MQ/250VDCAC110V/220V:100MQVDC | ||||
| Voltage Resistance Rating | DC24V:50OVAC;AC110V/220V:150OVAC(1Minute) | ||||
| Protection Level | lp66 | ||||
| Installation Position | Rotary degree:360° | ||||
| Electriad connection | G1/2water-proofcable connectors,Electic power lnes,Signal lines | ||||
| Environment temperature | -30°~+60° | ||||
| Control dircuit options | Standard type:Limit position swich Atype:with mid-position switch | ||||
| Optional function | Dehumidification heater | ||||
Unique FAQs
1.
Can valve electric actuators be retrofitted to existing systems?
Yes, many valve electric actuators are designed to be easily retrofitted into existing systems. Key considerations include ensuring compatibility, correct sizing, and any necessary modifications for smooth integration. Consulting with manufacturers and experts can help guide the retrofitting process.
What role do valve electric actuators play in preventing leaks and spills in industrial processes?
Valve electric actuators provide precise control over valve positions, which is crucial for preventing leaks and spills. Their accuracy and responsiveness help maintain the safety and integrity of industrial processes, minimizing the risk of environmental incidents.
Are there advancements in remote monitoring and control of valve electric actuators?
Yes, there have been significant advancements in remote monitoring and control due to improved communication technologies. Smart actuators now often feature connectivity options that allow operators to monitor and adjust valve positions remotely, increasing operational flexibility and efficiency.
How do valve electric actuators contribute to process optimization in manufacturing plants?
These actuators enhance process optimization by offering precise control over fluid flow. This precision improves the efficiency of manufacturing processes, ensuring consistent product quality and reducing waste.
What measures are in place to ensure the cybersecurity of smart valve electric actuators?
As smart technologies become more widespread, cybersecurity is critical. Manufacturers implement strong security measures, such as encryption and authentication protocols, to protect against cyber threats and unauthorized access.
