Basic Info.

Model NO.	M05 (five wires with signal feedback and Internal	Connection Form	Thread
Driving Mode	Electric	Nominal Pressure	PN1.0-32.0MPa
Channel	Straight Through Type	Structure	Flexible Ball Valve
Type	Flexible Ball Valve	Function	Control Flow Valve
Temperature	Normal Temperature	Application	Industrial Usage, Water Industrial Usage, Household Usage
Ambient Temperature	15-50 Celsius	Working Temperature	0-90 Celsius
Working Pressure	10 Bar Max.	Open/Close Time	5 Sec.
Rated Protection	IP67	Nominal Voltage	AC230V Working Current 0.5 AMPS
Certificate	ISO, CE;Atex	Specifications	Compact Design Light Weight Small Actuator with Fa
Valve Diameter	DN25	Actuator Voltage	DC5V DC12V
Transport Package	Bubble Wrap Plus Carton	Specification	DC12V 24V AC110 220V 380V
Trademark	LEADWIN	Origin	China
HS Code	8501109990	Production Capacity	3000piece/Month

Packaging & Delivery

Package Size	10.00cm * 10.00cm * 16.00cm	Package Gross Weight	1.200kg
Lead Time	15 days (1 - 1000 Pieces) To be negotiated ( > 1000 Pieces)

Product Description

Mini Electric Ball Valve
Compact design and light weight, small electrical actuator with fail-safe function (NC/NO)

		INSTRUCTION FOR MANUAL OVERRIDE
		It is only permitted to use when power-off
		Lift the hand-wheel,and turn it left or right until the valve is in place
		When the black line on the indicator is horizontal,the valve is on;when vertical,the valve is off
		Press down hand-wheel after using manual override in order to work properly when power-on
CE	IS09001			EC

FEATURES			APPLICATION
Mini dimension suit for small equipment			HVAC
Patented technology-floating seal structure			Water treatment
Long service life:80000 to 100000 cycles			Chemical process
Low working current,suitable for battery driving			Small equipment for automatic Control
Manual override and position indicator			Replacing solenoid valve, particularly when solenoid can't work reliably
Metal gearbox and POM gear
High flow capability
			PARTS	MATERIAL
			Actuator housing	ABS
			Valve body	Brass/SS304
			Valve ball	Brass/SS304
			Stem	Brass/SS304
			Ball seat	PTFE
			Seal	SILASTIC(Q)

TECHNICAL PARAMETERS
Series	Max torque	Operating time	Working voltage	Max power	Enclosure	Max pressure	Medium temperature	Ambient temperature
FH-MO	2.5N,m	<5sec<>	DC3-V	<5w<><5sec<>	IP65	1.0Mpa	0-90ºC	-20ºC
			AC/DC9-24V

<5w<><5sec<><5sec<><5w<>    Mini Series 2-WAY MOTORIZED VALVE

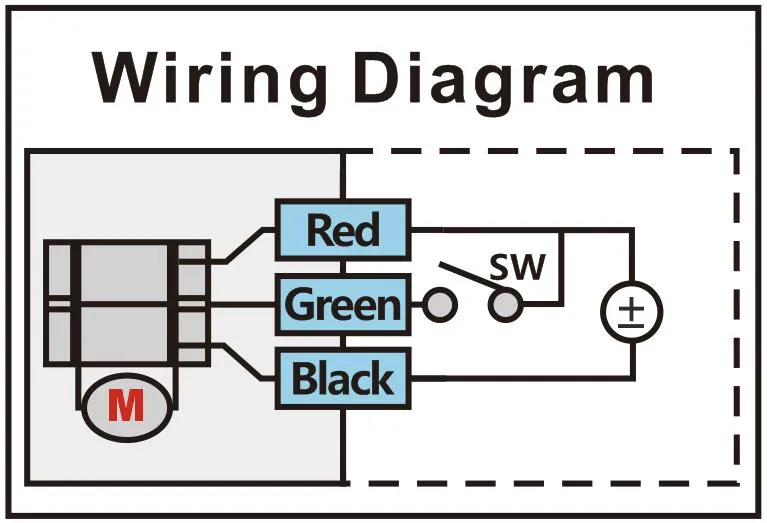

M01 (two wires and reverse polarity)
Voltage: DC6V/12V 1. Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position. 2.Connection SW to CLOSE, the valve closes, getting the positio/n, automatically power off, the valve remains side passes position (fully closed).

M02 (three wires two point control)
Voltage: DC6V/12V/ 9-35V 1.Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position.

2.Connection SW to CLOSE, the valve closes , getting the position, automatically power off, the valve remains side passes position(fully closed).

M03 (three wires one control)
Voltage: DC6V/9-35V  AC/DC9-24V <sub>1.Connecting SW, the valve opens, getting the position, automatically power off, the valve remain fully open position.

2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains side passes position(fully</sub>
M04 (two wires and fail-safe/power-off return)
Voltage: DC6V/9-35V  AC/DC9-24V 1.SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position.

2.SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position.

M05 (five wires with signal feedback and Internal automatic power off function)
Voltage: DC6V/12V
1.RD connect with positive, the BK connect with negative, the valve open, the actuator automatically power off after in place .
2.BK connect with positive, the RD connect with negative, the valve close, the actuator automatically power off after in place .
3.YW & WT are connect when the valve open fully, GR & WT are connect when the valve closed fully.



M06 (six wires with signal feedback and two point control)
Voltage: DC6V/12V 1.RD & GR connect with positive, the BK connect with negative.
2. When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.
3. When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed.
4. YW & WT connect with the valve's fully open signal wiring.
5. BL & WT connect with the valve's fully closed signal wiring.


M07 (six wires with signal feedback and one point control)  Voltage: DC6V/12V/ 9-35V

1. RD connect with positive, GR connect with SW and negative wiring, BK connect with negative wiring.
2. SW open, the valve open, and keeping fully open. SW closed, the valve closed, and keeping fully closed.

3.YW & GY connect with the valve's fully open signal wiring. BL & WT connect with the valve's fully closed signal wiring.

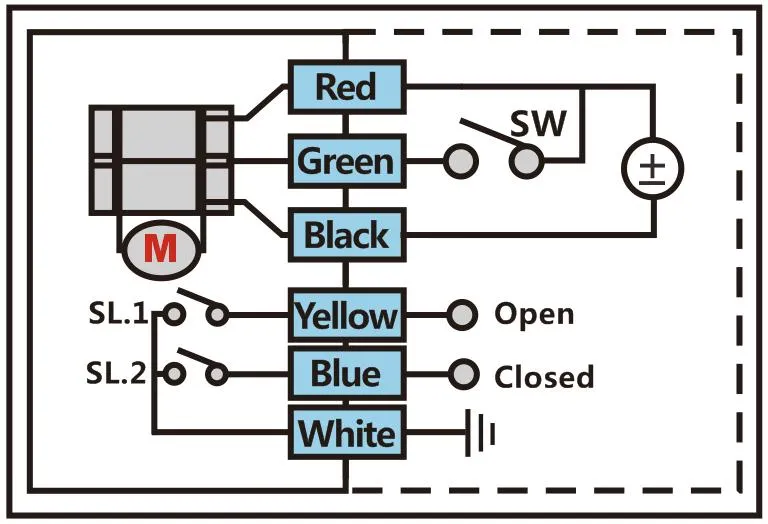

M08 (five wires with signal feedback and fail-safe/power-off return function)
Voltage: DC6V/9-35V  AC/DC9-24V 1.SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position. 2.SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position.
3.YW & GY connect with the valve's fully open signal wiring. BL & WT connect with the valve's fully closed signal wiring. Unique FAQs
