Basic Info.
| Model NO. | m01 two wires and reverse polarity | Connection Form | Thread |
|---|---|---|---|
| Driving Mode | Electric | Nominal Pressure | PN1.0-32.0MPa |
| Channel | Straight Through Type | Structure | Flexible Ball Valve |
| Type | Flexible Ball Valve | Function | Control Flow Valve |
| Temperature | Normal Temperature | Application | Industrial Usage, Water Industrial Usage, Household Usage |
| Ambient Temperature | 15-50 Celsius | Working Temperature | 0-90 Celsius |
| Working Pressure | 10 Bar Max. | Open/Close Time | 5 Sec. |
| Rated Protection | IP67 | Nominal Voltage | AC230V Working Current 0.5 AMPS |
| Specifications | Compact Design Light Weight Small Actuator with Fa | Valve Size | DN 20 |
| Actuator Voltage | DC5V DC12V ′′ | Transport Package | Bubble Wrap Plus Carton |
| Specification | DC12V 24V AC110 220V 380V | Trademark | LEADWIN |
| Origin | China | Production Capacity | 3000piece/Month |
Packaging & Delivery
| Package Size | 10.00cm * 10.00cm * 16.00cm | Package Gross Weight | 1.200kg |
|---|---|---|---|
| Lead Time |
15 days (1 - 1000 Pieces)
To be negotiated ( > 1000 Pieces) |
Product Description
Product DescriptionMini Electric Ball Valve
Compact design and light weight, small electrical actuator with fail-safe function (NC/NO) |
INSTRUCTION FOR MANUAL OVERRIDE | |||
| It is only permitted to use when power-off | ||||
 |
Lift the hand-wheel,and turn it left or right until the valve is in place | |||
| When the black line on the indicator is horizontal,the valve is on;when vertical,the valve is off | ||||
| Press down hand-wheel after using manual override in order to work properly when power-on | ||||
| CE | IS09001 | EC | ||
| FEATURES | APPLICATION | |||
| Mini dimension suit for small equipment | HVAC | |||
| Patented technology-floating seal structure | Water treatment | |||
| Long service life:80000 to 100000 cycles | Chemical process | |||
| Low working current,suitable for battery driving | Small equipment for automatic Control | |||
| Manual override and position indicator | Replacing solenoid valve, particularly when solenoid can't work reliably |
|||
| Metal gearbox and POM gear | ||||
| High flow capability | ||||
| PARTS | MATERIAL | |||
 |
||||
 |
Actuator housing |
ABS | ||
| Valve body | Brass/SS304 | |||
| Valve ball | Brass/SS304 | |||
| Stem | Brass/SS304 | |||
| Ball seat | PTFE | |||
| Seal | SILASTIC(Q) | |||
| TECHNICAL PARAMETERS | ||||||||
| Series | Max torque |
Operating time |
Working voltage |
Max power |
Enclosure | Max pressure |
Medium temperature |
Ambient temperature |
| FH-MO | 2.5N,m | <5sec<> | DC3-V | <5w<><5sec<> | IP65 | 1.0Mpa | 0-90ºC | -20ºC |
| AC/DC9-24V | ||||||||
Mini Series 2-WAY MOTORIZED VALVE
M01 (two wires and reverse polarity)
Voltage: DC6V/12V
1. Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position.
2.Connection SW to CLOSE, the valve closes, getting the positio/n, automatically power off, the valve remains side passes position (fully closed).
M02 (three wires two point control)
Voltage: DC6V/12V/ 9-35V
1.Connecting SW to OPEN, the valve opens, getting the position, automatically power off, the valve remain fully open position.2.Connection SW to CLOSE, the valve closes , getting the position, automatically power off, the valve remains side passes position(fully closed).
M03 (three wires one control)
Voltage: DC6V/9-35V AC/DC9-24V
1.Connecting SW, the valve opens, getting the position, automatically power off, the valve remain fully open position.2.Disconnecting SW, the valve close, getting the position, automatically power off, the valve remains side passes position(fully
M04 (two wires and fail-safe/power-off return)
Voltage: DC6V/9-35V AC/DC9-24V
1.SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position.2.SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position.

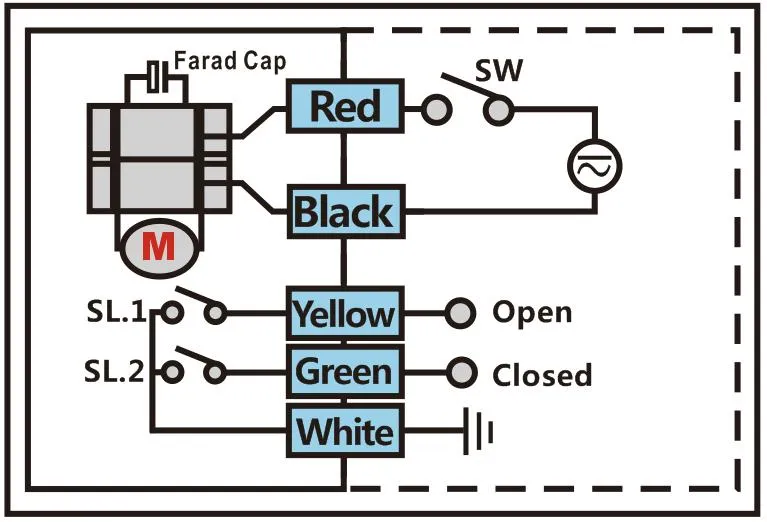

M05 (five wires with signal feedback and Internal automatic power off function)
Voltage: DC6V/12V
1.RD connect with positive, the BK connect with negative, the valve open, the actuator automatically power off after in place .2.BK connect with positive, the RD connect with negative, the valve close, the actuator automatically power off after in place .
3.YW & WT are connect when the valve open fully, GR & WT are connect when the valve closed fully.

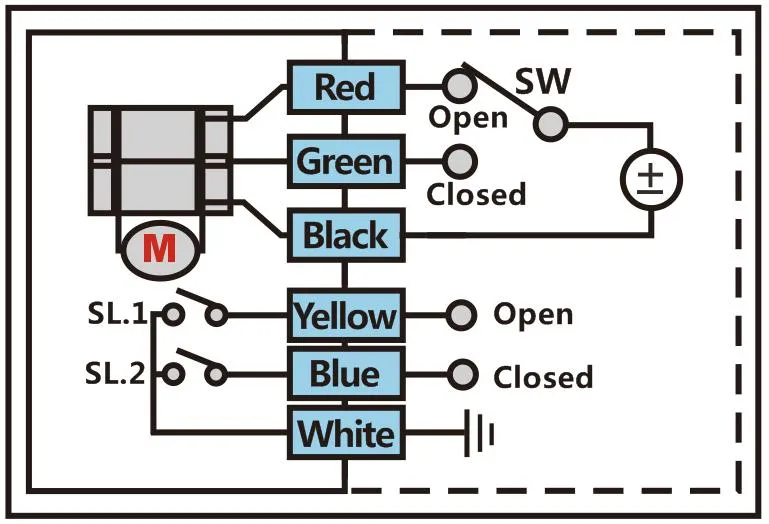

M06 (six wires with signal feedback and two point control)
Voltage: DC6V/12V
1.RD & GR connect with positive, the BK connect with negative.2. When RD & SW connected, the valve open, the actuator automatically power off after the valve fully open.
3. When GR & SW connected, the valve closed, the actuator automatically power off after the valve fully closed.
4. YW & WT connect with the valve's fully open signal wiring.
5. BL & WT connect with the valve's fully closed signal wiring.
M07 (six wires with signal feedback and one point control) Voltage: DC6V/12V/ 9-35V
- RD connect with positive, GR connect with SW and negative wiring, BK connect with negative wiring.
- SW open, the valve open, and keeping fully open. SW closed, the valve closed, and keeping fully closed.
M08 (five wires with signal feedback and fail-safe/power-off return function)
Voltage: DC6V/9-35V AC/DC9-24V
1.SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position.
2.SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position.
3.YW & GY connect with the valve's fully open signal wiring. BL & WT connect with the valve's fully closed signal wiring. Related Products
