Basic Info.
| Driving Mode | Electric | Nominal Pressure | PN1.0-32.0MPa |
|---|---|---|---|
| Channel | Straight Through Type | Structure | Flexible Ball Valve |
| Type | Flexible Ball Valve | Function | Control Flow Valve |
| Temperature | Normal Temperature | Standard | Bsp;NPT, G Thread |
| Application | Industrial Usage, Water Industrial Usage, Household Usage | Ambient Temperature | 15-50 Celsius |
| Working Temperature | 0-90 Celsius | Working Pressure | 10 Bar Max. |
| Open/Close Time | 5 Sec. | Rated Protection | IP67 |
| Nominal Voltage | AC230V Working Current 0.5 AMPS | Specifications | Compact Design Light Weight Small Actuator with Fa |
| Transport Package | Bubble Wrap Plus Carton | Specification | DC12V 24V AC110 220V 380V |
| Trademark | LEADWIN/OMEN/MTD | Origin | China |
| HS Code | 8481804090 | Production Capacity | 3000piece/Month |
Packaging & Delivery
| Package Size | 11.00cm * 8.50cm * 7.50cm | Package Gross Weight | 0.860kg |
|---|---|---|---|
| Lead Time |
15 days (1 - 100 Pieces)
To be negotiated ( > 100 Pieces) |
Product Description

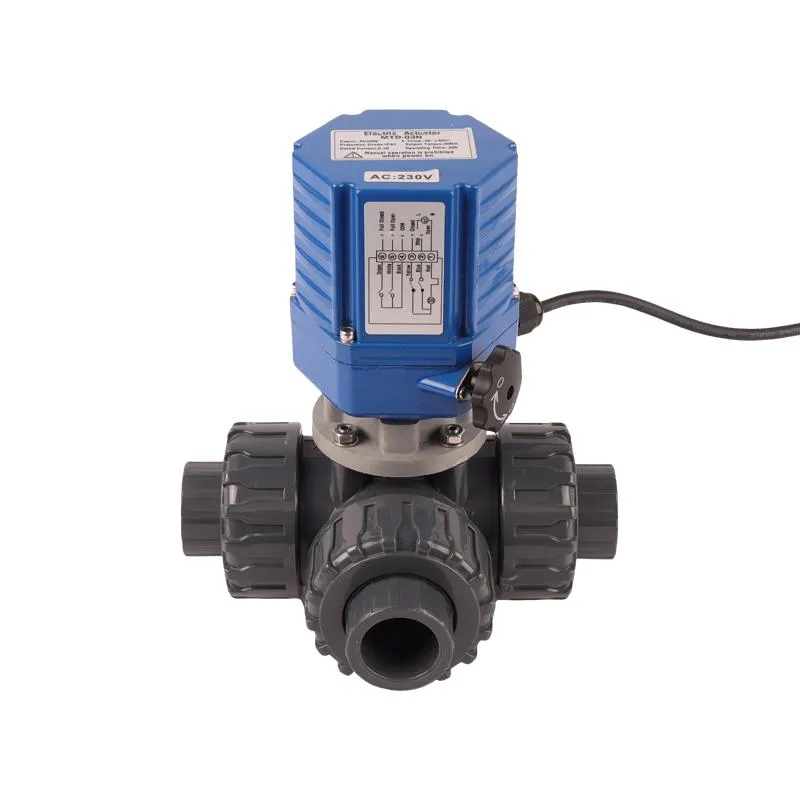

Product Description3 way pvc Ball Valve with Electric Actuator
Compact design and light weight, small electrical actuator with fail-safe function (NC)

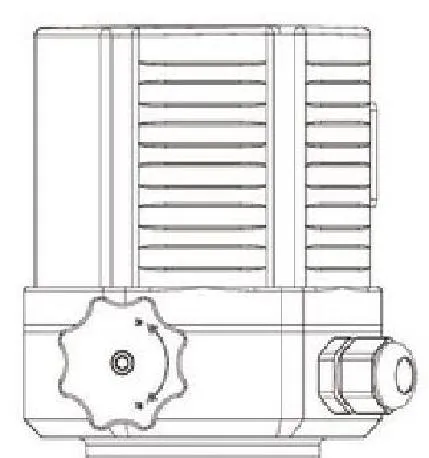

| Electric Actuator | MTD-03Appearance Size |
||||
Note:Connect Bafang with 14X14.11X11.9x9.
| Performance Parameter | |||||
| Model | MTD-03 | ||||
| Power supply(v) | DC24V | AC110V | AC220V | ||
| Outputterque | 24NM | 24NM | 24NM | ||
| Motion times(s) | 12s | 12s | 12s | ||
| Scope ofrotary angle() | 0-90° | 0-90° | 0-90° | ||
| Motorpower(w) | 4w | 6.5w | 5w | ||
| Rated current(A) | 1A | 0.2A | 0.1A | ||
| Machine weight(kg) | 1.5kg | 1.5kg | 1.5kg | ||
| Insulation Resistance(M2) | DC24V:100MQ/250VDCAC110V/220V:100MQVDC | ||||
| Voltage Resistance Rating | DC24V:50OVAC;AC110V/220V:150OVAC(1Minute) | ||||
| Protection Level | lp66 | ||||
| Installation Position | Rotary degree:360° | ||||
| Electriad connection | G1/2water-proofcable connectors,Electic power lnes,Signal lines | ||||
| Environment temperature | -30°~+60° | ||||
| Control dircuit options | Standard type:Limit position swich Atype:with mid-position switch | ||||
| Optional function | Dehumidification heater | ||||

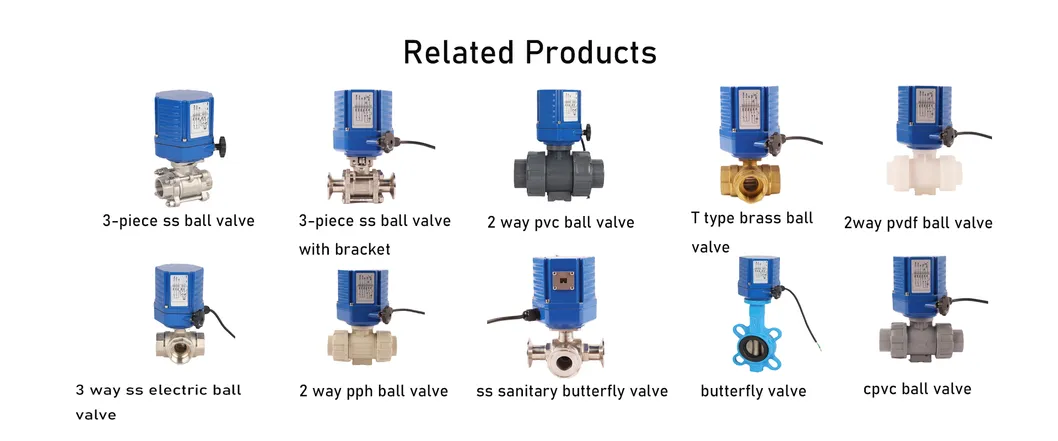

Related Products
About us
Can valve electric actuators be retrofitted to existing systems?
Yes, they are often designed for retrofitting. It's important to assess compatibility, sizing, and necessary modifications. Consulting with manufacturers and experts is recommended.
What role do valve electric actuators play in preventing leaks and spills in industrial processes?
They provide precise control to prevent leaks and spills, enhancing safety and integrity in industrial processes and reducing environmental risks.
Are there advancements in remote monitoring and control of valve electric actuators?
Yes, advancements in technology enable remote monitoring and control. Smart actuators with connectivity features improve operational flexibility and efficiency.
How do valve electric actuators contribute to process optimization in manufacturing plants?
By offering precise fluid flow control, they enhance efficiency, ensure consistent quality, and minimize waste in manufacturing processes.
What measures are in place to ensure the cybersecurity of smart valve electric actuators?
Manufacturers use robust security measures, such as encryption and authentication protocols, to protect against cyber threats and unauthorized access.
