Basic Info.

Model NO.	E-01	Driving Mode	Electric
Nominal Pressure	PN1.0-32.0MPa	Channel	Straight Through Type
Structure	Flexible Ball Valve	Type	Flexible Ball Valve
Function	Control Flow Valve	Temperature	Normal Temperature
Standard	Bsp;NPT;DIN;BS;ANSI	Application	Industrial Usage, Water Industrial Usage, Household Usage
Ambient Temperature	15-50 Celsius	Working Temperature	0-90 Celsius
Working Pressure	16 Bar Max.	Open/Close Time	1-15 Sec.
Rated Protection	IP67	Nominal Voltage	AC230V Working Current 0.5 AMPS
Specifications	Compact Design Light Weight Small Actuator with Fa	Transport Package	Bubble Wrap Plus Carton
Specification	ac/dc220v dn50 20nm	Trademark	LEADWIN
Origin	China	HS Code	8501109990
Production Capacity	3000piece/Month

Packaging & Delivery

Package Size	33.00cm * 16.00cm * 20.50cm	Package Gross Weight	3.500kg
Lead Time	15 days (1 - 1000 Pieces) To be negotiated ( > 1000 Pieces)

Product Description

Electric Ball Valve
Compact design and light weight, small electrical actuator with fail-safe function (NC)

MTD SERIES ACTUATED VALVE Enclosure level:IP67, Mechanical port:ISO5211 (F03/F05/F07//F10), It can be used up to 500,000times. Housing material:ABS/DIE CASTING ALUMINUM, with manual override
PICTURE	MODEL		ON AND OFF VOLTAGE	TIMES		MODULATING VOLTAGE
	MTD02N-20N Max 24N		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	10s/15s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD05N-50N          Max60N.		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	12s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v A-20ma
	MTD08N-80N          Max96N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
	MTD10N-100-110N Max132N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD20N-200N     Max     24N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v      4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD40N-400N,Max450N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
	MTD100N-1000N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/45s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
MODULATING ACTUATOR INSIDE PARTS		ON AND OFF ACTUATOR INSIDE PARTS MTD valve electric actuators CE/ISO9001

Diemnsion

MTD-05NAC Series normal on/off actuator usage instructions
Direct mount [female octagonal output shaft] CE ISO9001

Main Parts

Main  parts
					Parts	Material		Parts	Material
				1	Actuator	Heatproof ABS or Casting aluminum	6	Labe	PVC
				2	Indicator	Transparent AS	7	Wrench fixed	Heatproof_ABS
				3	Screw X 6	304	8	Hexagon wrench	Tool stee
				4	Manual shaft	304	9	Waterproof cable connector	NiLon
				5	Oil seal	NBR	10	Lid seal	NBR
	PART 2         ser Manua		Success comes from our persistent pursue of perfect details. Excellence originates from our persistence of win-win philosophy.					Actuator
2

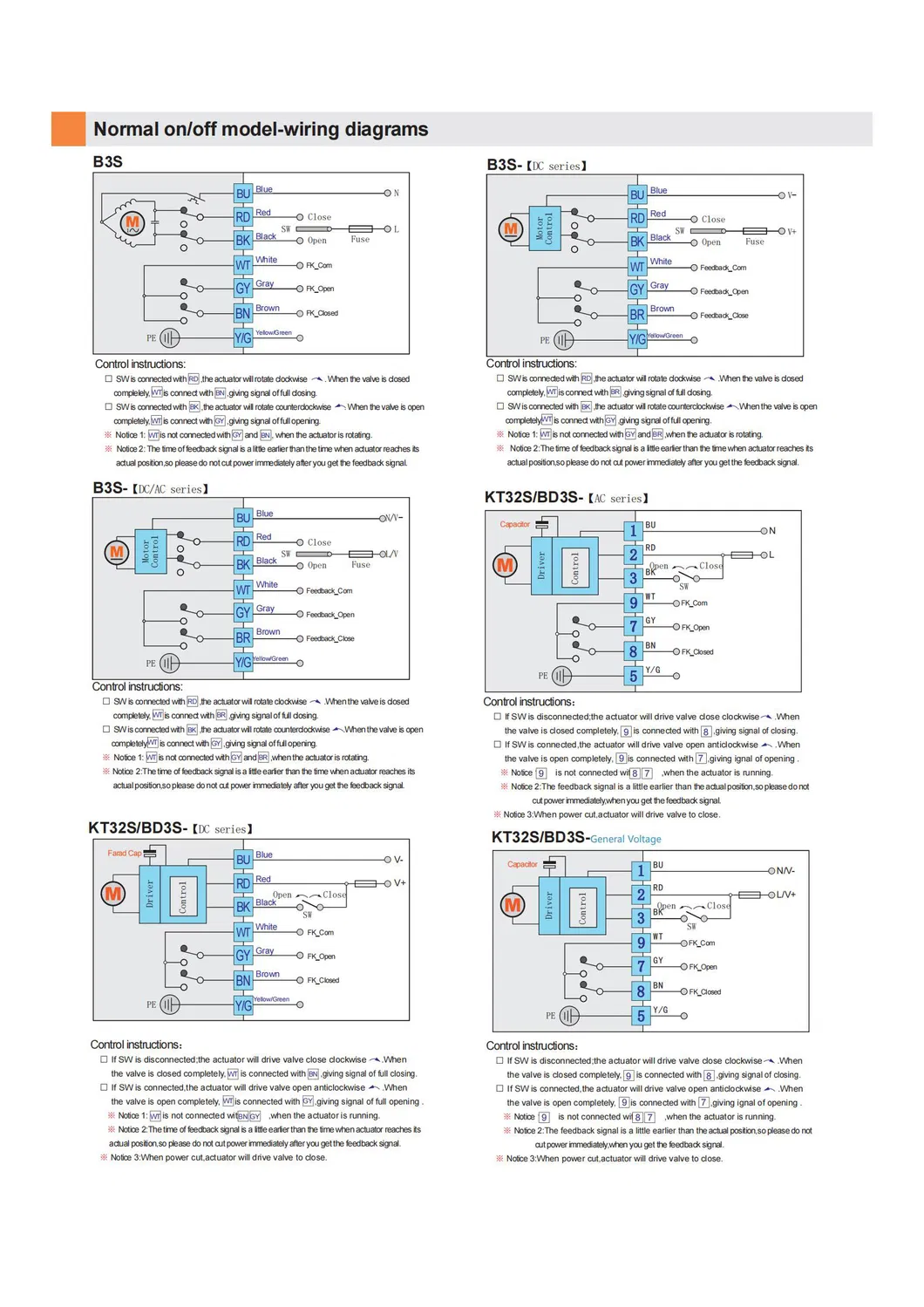

Normal on/off -wiring diagrams Unique FAQs

1. Can valve electric actuators be retrofitted to existing systems?

   Yes, many valve electric actuators are designed for easy retrofitting. Key considerations include compatibility, sizing, and necessary modifications to ensure smooth integration. Consulting manufacturers and industry experts can provide valuable guidance.

2. What role do valve electric actuators play in preventing leaks and spills in industrial processes?

   Valve electric actuators offer precise control, crucial for preventing leaks and spills. By accurately modulating valve positions, they enhance the safety and integrity of industrial processes, reducing the risk of environmental incidents.

3. Are there advancements in remote monitoring and control of valve electric actuators?

   Absolutely. Advances in communication technologies have enabled remote monitoring and control of valve electric actuators. Smart actuators with connectivity features allow operators to adjust valve positions remotely, improving operational flexibility and efficiency.

4. How do valve electric actuators contribute to process optimization in manufacturing plants?

   These actuators provide precise control of fluid flow, optimizing manufacturing processes. This precision boosts efficiency, ensures consistent quality, and minimizes waste.

5. What measures are in place to ensure the cybersecurity of smart valve electric actuators?

   With the rise of smart technologies, cybersecurity is critical. Manufacturers implement strong security measures, such as encryption and authentication protocols, to protect against cyber threats and unauthorized access.
