Basic Info.

Connection Form	Thread	Driving Mode	Electric
Nominal Pressure	PN1.0-32.0MPa	Channel	Straight Through Type
Structure	Flexible Ball Valve	Type	Flexible Ball Valve
Function	Control Flow Valve	Temperature	Normal Temperature
Standard	Bsp;NPT	Application	Industrial Usage, Water Industrial Usage, Household Usage
Ambient Temperature	15-50 Celsius	Working Temperature	0-90 Celsius
Working Pressure	16 Bar Max.	Open/Close Time	1-15 Sec.
Rated Protection	IP67	Nominal Voltage	AC230V Working Current 0.5 AMPS
Specifications	Compact Design Light Weight Small Actuator with Fa	Transport Package	Bubble Wrap Plus Carton
Specification	DC12V 24V AC110 220V	Trademark	LEADWIN
Origin	China	HS Code	8501109990
Production Capacity	3000piece/Month

Packaging & Delivery

Package Size	16.00cm * 15.00cm * 16.00cm	Package Gross Weight	0.860kg
Lead Time	15 days (1 - 100 Pieces) 35 days (101 - 10000 Pieces) To be negotiated ( > 10000 Pieces)

Product Description

Electric Ball Valve

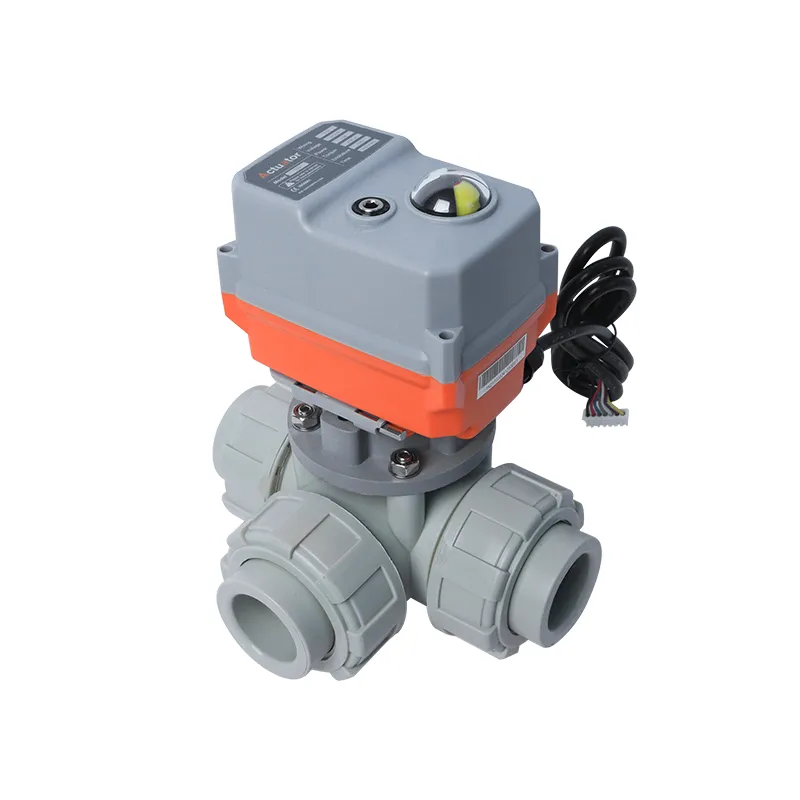

3 way pph Plastic Electric Ball Valve
Compact design and light weight, small electrical actuator with fail-safe function (NC)

MTD SERIES ACTUATED VALVE Enclosure level:IP67, Mechanical port:ISO5211 (F03/F05/F07//F10), It can be used up to 500,000times. Housing material:ABS/DIE CASTING ALUMINUM, with manual override
PICTURE	MODEL		ON AND OFF VOLTAGE	TIMES		MODULATING VOLTAGE
	MTD02N-20N Max 24N		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	10s/15s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD05N-50N          Max60N.		AC 24V/AC 110V/AC 220V DC/AC95-265 DC24v,DC12v	12s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v A-20ma
	MTD08N-80N          Max96N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
	MTD10N-100-110N Max132N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/20s		AC110v 4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD20N-200N     Max     24N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v      4-20ma DC24V 4-20ma DC24,AC/DC95-265v 4-20ma
	MTD40N-400N,Max450N.		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	25s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
	MTD100N-1000N		AC 24V/AC 110V/AC 220V, DC/AC95-265, DC24v,DC12v	10s/45s		AC110v      4-20ma DC24V      4-20ma DC24,AC/DC95-265v 4-20ma
MODULATING ACTUATOR INSIDE PARTS		ON AND OFF ACTUATOR INSIDE PARTS MTD valve electric actuators CE/ISO9001

Diemnsion

MTD-05NAC Series normal on/off actuator usage instructions
Direct mount [female octagonal output shaft] CE ISO9001

Main Parts

Main  parts
					Parts	Material		Parts	Material
				1	Actuator	Heatproof ABS or Casting aluminum	6	Labe	PVC
				2	Indicator	Transparent AS	7	Wrench fixed	Heatproof_ABS
				3	Screw X 6	304	8	Hexagon wrench	Tool stee
				4	Manual shaft	304	9	Waterproof cable connector	NiLon
				5	Oil seal	NBR	10	Lid seal	NBR
	PART 2         ser Manua		Success comes from our persistent pursue of perfect details. Excellence originates from our persistence of win-win philosophy.					Actuator
2

Normal on/off -wiring diagrams

Related Products

About us

===

Unique FAQs

1. Retrofitting Electric Actuators:
   Electric actuators can often be retrofitted to existing systems. Ensure compatibility, proper sizing, and necessary modifications. Consult manufacturers or experts for guidance.

2. Preventing Leaks and Spills:
   Electric actuators offer precise control, helping to prevent leaks and spills by accurately modulating valve positions, thus enhancing safety and process integrity.

3. Advancements in Remote Monitoring:
   Modern communication technologies enable remote monitoring and control of electric actuators. Smart actuators with connectivity features improve operational flexibility and efficiency.

4. Process Optimization:
   Electric actuators optimize processes by providing precise fluid flow control, enhancing efficiency, ensuring consistent quality, and reducing waste in manufacturing.

5. Cybersecurity Measures:
   To protect smart actuators, manufacturers use robust security measures like encryption and authentication protocols to guard against cyber threats and unauthorized access.
